FluxDAQ Ultra-High Resolution Heat Flux Sensor and Thermocouple Measurement System

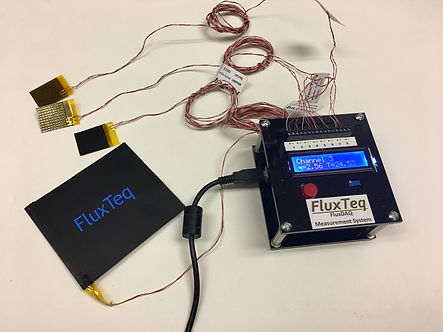

The FluxDAQ is a signal measurement system that can be used for accurately measuring and recording precise analog voltage signals from FluxTeq's heat flux/thermocouple thermal sensors. With 8 high resolution differential voltage input channels, the FluxDAQ is not only an inexpensive data acquisition system but also one of a few systems on the market that can accurately precisely resolve heat flux sensor and thermocouple output signals.
Each complete PHFS heat flux sensor package includes an integrated thermocouple which requires 2 differential channels total for each sensor that is simultaneously measuring both heat flux and temperature signals. Therefore, the FluxDAQ can handle up to 4 complete PHFS sensors that are measuring both heat flux and temperature.
The necessary software to operate the FluxDAQ for your computer, which includes a real-time graphical user interface, is included with every FluxDAQ data reader purchase free of charge.
Live Heat Flux and Temperature Readout
Real-time plots of heat flux and temperature
Applications
FluxDAQ RoHS
Certificate
- Heat flux sensor & thermocouple signal measurement and data acquisition
- In-situ measurement of thermal insulation R-value using the PHFS-09 series sensors
- Great for educational use and heat transfer courses
- Teach concepts of heat vs. temperature with hands-on experiments.
Price (US)
$400 For FluxDAQ (Note: Does not include cost of sensors)
​
Heat flux sensor and Type-T Thermocouple Analog DC Voltages
8 Differential (16 Single-Ended)
24-bit Delta-Sigma
<1 µV
Approximately 1 - 2 W/m^2
Approximately 0.1 - 0.2 W/m^2
Up to 2.5 Hz
Integrated Thermistor for Cold Junction Temperature Compensation
FluxDAQ Data Reader/Acquisition System Specifications
Input Signal Type:
Number of Channels:
Type of ADC:
Voltage Resolution:
Heat Flux Resolution Using PHFS-01/01e:
Heat Flux Resolution Using PHFS-09e:
Maximum Sampling Rate:*
Standard Features:
​
* Samping rate is dependent on the number of active channels taking measurements. The specified maximum sampling rate is for 2 active differential channels (1 heat flux & 1 thermocouple)
**Dimensions of FluxDAQ USB interface measurement system in an acrylic enclosure that is built to house the FluxDAQ with all the optional additional features.
Purchasing
***Lead times may vary
Please email info@FluxTeq.com for any purchases. Include your shipping address and the number of sensors and types you would like purchase so that we can estimate the shipping and total costs.
Feel free to include any information about your specific application so that we can provide you with a FluxDAQ datalogger with the most appropriate capabilities.
